Use the mating socket as the starting reference
Bring the socket reference into the enquiry before discussing a cable length. Provide the component drawing, an equipment reference or clear photographs that show the intended mating face. Label the view so that the supplier can distinguish the connection you are referring to from any other port nearby.
If the request concerns an existing product, ask your team whether the socket and enclosure will remain unchanged. A lead selected for one revision should not silently become the reference for another revision with different surrounding parts. Include the revision used for the enquiry on both the cable drawing and the equipment view.

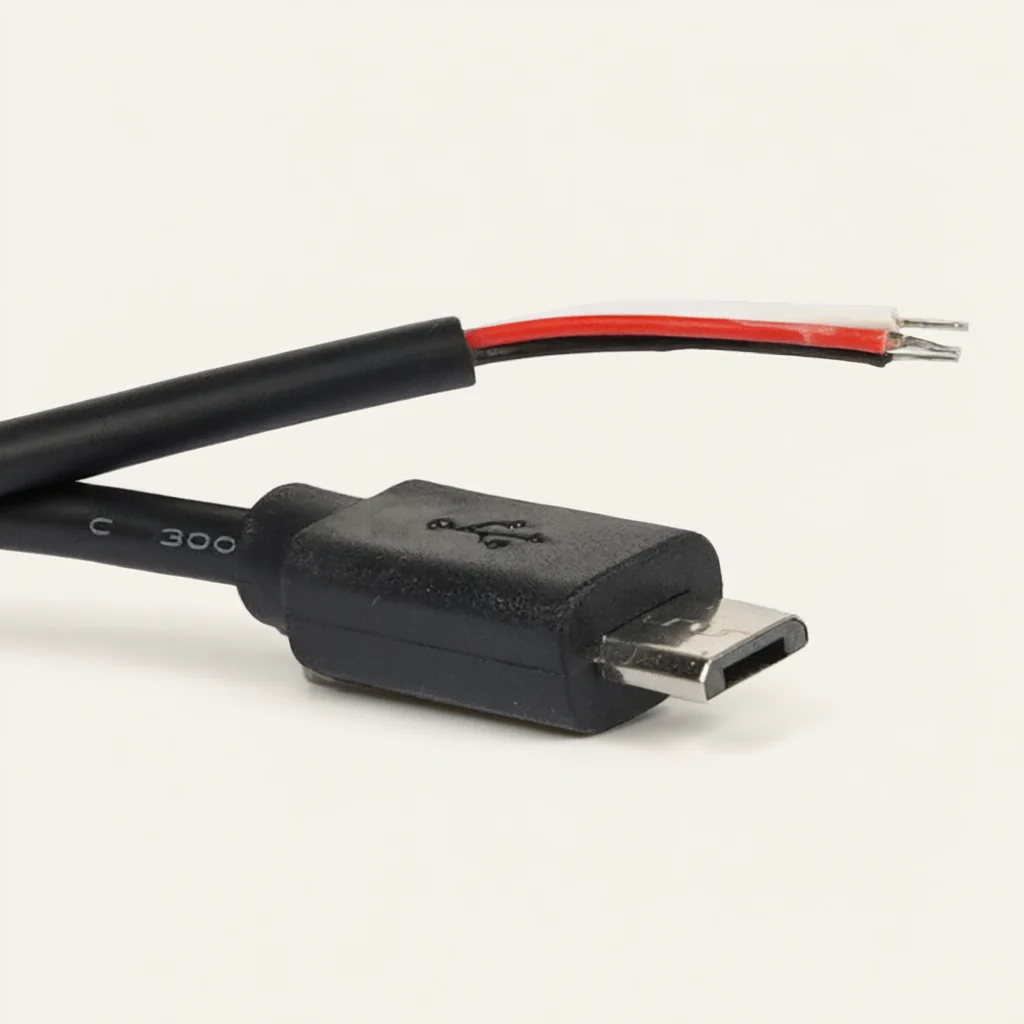

The Micro male form identifies the connector side of the listed series. Your request should still describe the required interface in enough detail for a proposal to be checked. Keep brand names and informal device descriptions as supporting context; do not let them replace the actual socket reference and the connection requirements supplied by the equipment owner.
Show plug orientation and enclosure clearance
Prepare a view of the connector in the position you want it to occupy. Mark the orientation of the mating face and the direction in which the cable should leave the connector body. Where an enclosure surrounds the connection, show the opening and the nearby surfaces on the same drawing.
Ask the assembly team to identify the space needed to position and handle the connector. If the connection is made before a cover is installed, show that sequence. If it must be accessed after the product is closed, show the access route used by the person making the connection. These are different review conditions and should be described separately.
Avoid approving the layout only from a close-up of the loose cable. For sample review, provide the relevant enclosure or a representative layout and ask the reviewer to document the fit in that setting. Keep observations about body placement, lead direction and access as separate notes so that any requested change can be understood precisely.
If a protective cover or another removable part sits beside the socket, include it in the physical review. Ask the reviewer to show the intended connection with that part present. A marked photograph of this arrangement gives the purchasing discussion a concrete reference for any access question that remains.
Define the connection at the assembly end
The purchasing request should explain how the cable is intended to join your assembly. Ask the person responsible for the circuit to supply a connection schedule and identify the destination of each required connection. State the viewing direction used for the connector drawing, and use the same labels throughout the documentation.
Describe the desired preparation at the assembly end as a requirement for discussion. Include the receiving component or connection method specified by your own design. Ask for confirmation of the proposed supply condition before using the sample as the basis of a production purchase.
If the cable is required for different product versions, keep their connection schedules separate. Give each version its own part reference even if the outer connector looks the same. Include a short note explaining which features are shared and which differ. That lets purchasing compare the variants without combining instructions that belong to different assemblies.
Measure the route that the lead must follow
The series lists lengths of 30 cm, 50 cm, 100 cm and 200 cm, as well as custom lengths. Choose a starting point using the route inside or around your equipment. Mark the path between the connector and the intended assembly connection, including any fixed points that your design requires.
State the references used for the length dimension. If the assembly team needs a particular amount of working lead at one end, show that requirement rather than adding an unexplained allowance to the overall length. Ask for the proposed measurement convention to be confirmed in the cable description.
Consider the positions used during assembly and during the finished product's intended use. A drawing may need to show more than one position when a cover or subassembly is moved. Ask the sample reviewer to compare the lead against those drawings. Record which route has been reviewed so that a later order is based on the same layout.
Choose appearance and supplied packing
Black is a listed color for the Micro cable series, and color customization is available. PVC is a listed jacket material. Length, color, jacket material and packaging are included in the stated customization scope. Put the requested combination next to the connector and assembly-end details in your enquiry.
When the lead is visible in the finished product, provide the appearance reference used by your team. If the lead is concealed, you may instead want its identification to align with your assembly instructions. Explain the purpose of any color request and ask for the sample appearance to be confirmed against that reference.
Describe how the cable should be organized for receiving and assembly. If different versions are delivered for different equipment models, ask for a packing proposal that preserves their identification. Keep the desired label information and quantity basis explicit. Packing preferences should form part of the order discussion, rather than an assumption that every configuration arrives in the same way.
Review the intended function with the equipment owner
Write down what the connection must do in your product. If your requirement involves charging, data or both, identify the function and the conditions the equipment owner wants evaluated. Keep those requirements separate from the external connector description so that the functional request remains visible.
For a sample evaluation, use the equipment arrangement named in the enquiry. Record the equipment revision and the cable drawing revision together. Ask the responsible reviewer to identify which requirements have been checked and which still need clarification before purchase approval.
If the proposed cable is being considered for several devices, make a separate evaluation record for each intended setup. Do not describe a successful physical fit on one device as approval for every product carrying a similar connector. The useful record is the specific configuration, the setup in which it was reviewed and the questions that remain open for your team.
Make a replacement request traceable
For a replacement lead, collect the original cable reference, the current equipment drawing and photographs of the intended connection. State whether you want the existing arrangement reproduced or whether any feature is changing. If the old part has no reliable identifier, explain that limitation and provide the information your team can verify.
Use the product range to keep this Micro connector request separate from other USB leads in the project. Identify the intended connector form in the parts list rather than grouping every small USB lead under one description. If a colleague proposes a different form, review it as a separate option with its own drawing.
For a repeat order, retain the agreed appearance and connection schedule with the current revision. Ask purchasing to use that record when discussing quantities and packing. A photograph from an earlier shipment can be helpful, but it should not become the only description of a lead whose assembly requirements need to remain consistent.
Send a Micro USB enquiry with the right references
Huajunxin is a wire and cable manufacturer integrating production, research and development, and sales. For the Micro male cable series, send the mating socket reference, cable drawing link, requested length and quantity. Add the assembly-end requirements, preferred color and packing details so that the enquiry describes a complete proposed configuration.
The contact page can carry your request and a drawing link. Send supporting documents by email when that is more convenient; the form does not include an attachment upload. Make sure the link points to the revision you want reviewed and that the recipient can access it.
Finish with the points that need an answer before your purchasing decision. Ask about the proposed specification, sample arrangements, quotation and delivery planning for your request. If your equipment design is still changing, identify the open dimensions or connections explicitly. This allows the discussion to focus on the features that are ready for review and those that still need a decision.
Frequently asked questions
Which Micro connector form is identified?
The series identifies a Micro male cable form. Provide the mating socket drawing or a clear interface reference with your enquiry, and describe the assembly connection at the other end. Where several product revisions are involved, state which revision the request concerns. This keeps the connector selection attached to the actual equipment rather than to an informal device description.
Which lengths are listed for this series?
The listed lengths are 30 cm, 50 cm, 100 cm and 200 cm, with custom lengths available. Show the intended route and measurement references on your drawing. If the assembly sequence requires working lead in a particular position, include that position in the request. Ask for the proposed length to be confirmed for the connector and assembly-end arrangement you need.
What customization can I discuss?
The stated customization scope includes length, color, jacket material and packaging. Black is listed, and PVC is a listed jacket material. Include the preferred combination in the same request as the connection schedule. If visual appearance matters, provide the reference your team will use to review the sample rather than relying only on a color name.
Should I describe the required function separately?
Yes. State the charging or data function your equipment requires and provide the relevant requirements for review. The equipment owner should define the evaluation setup and acceptance questions. Keep those requirements alongside the connector and routing drawings so that the proposed physical configuration and the intended function can be discussed together without one standing in for the other.
